PQWT-CX220 Thermal Imaging Camera visible image resolution 300,000 pixel

FOB Reference Price:Get Latest Price
$300.00 - $600.00 / Sets | 1 Set/Sets (Min. Order)
Usage:
Auto Testing Machine Compression Testing Machine Process Testing Machine Universal Testing Machine
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China (Mainland)
Brand Name:
PQWT
Model Number:
PQWT-CX220
Power:
Electronic
Display screen:
3.2 full angle TFT display screen
Infrared image resolution:
220 * 160
visible image resolution:
300,000 pixel
LCD resolution:
320 * 240
Field angle/focus length:
27° * 35°/4.0mm
Thermal sensitivity:
0.07℃
Temperature measurement range:
-20℃ to 300℃ (-4°F to 572°F)
Measurement accuracy:
±2% / ±2℃
Emissivity:
Adjustable from 0.01 to 1.00
Frame rate of thermal images:
9Hz
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
underground water finder detector is packed in Alumium Specialized Box + Carton
Port
Changsha
Product Description
Thermal Imaging Camera

PQWT-CX220 Thermal Imaging Camera Used in fields of medical treatment, fire fighting,
archaeology, traffic, agriculture, geology, energy, smelting, electronic
manufacture, etc and is the ideal selection for electrician and maintenance
personnel and technicians and can be used to find the problem area quickly.

Technical Parameters


1. Display screen: 3.2 ″ full angle TFT display screen
2. Infrared image resolution: 220×160
3. visible image resolution: 300,000 pixel
4. LCD resolution: 320×240
5. Field angle/focus length: 27°×35°/4.0mm
6. Thermal sensitivity: 0.07℃
7.Temperature measurement range: -20℃ to 300℃ (-4°F to 572°F)
8.Measurement accuracy: ±2% / ±2℃
9.Emissivity: Adjustable from 0.01 to 1.00
10.Frame rate of thermal images: 9Hz
11.Wavelength coverage: 8-14um
12.Focus mode: Fixed

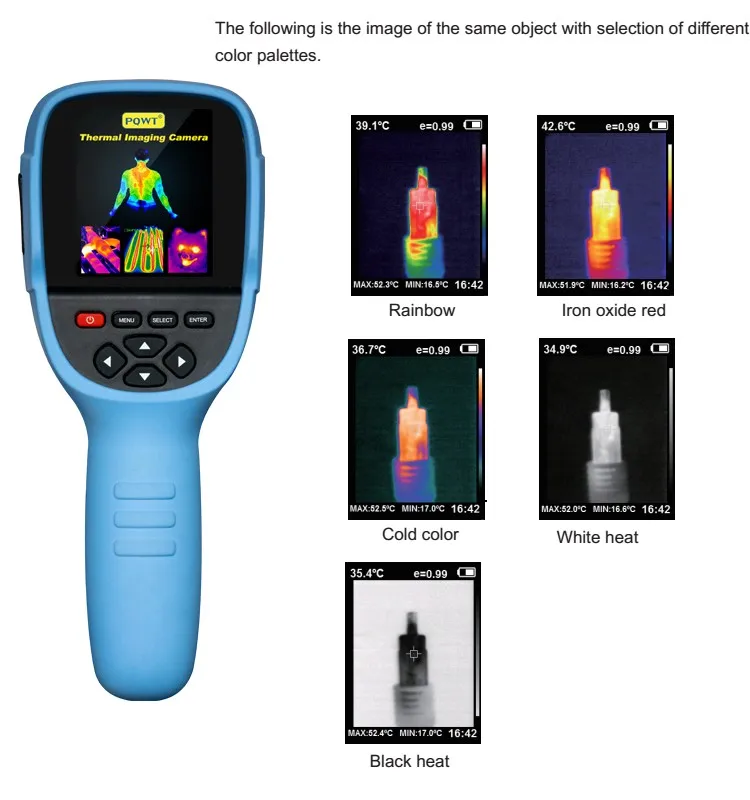

13.Color palette: Rainbow, iron oxide red, cold color,
black & white, white & black
14.View option: The integration of thermal image with
25% step length and visible image.
15.Storage medium: Built-in 3G (above 2 million image stored)
16.File format: JPG
17.USB: Micro USB 2.0
18.Power supply: Built-in chargeable 18650 battery
19.working time: 2-3 hours
20.Automatic power-off time:Selectable: 5 minutes/20 minutes/ not power off automatically
21.Open response time: 0 minutes
22.Product size(length × width × height):90mm×105mm×223mm
23.Product weight: 389g
24.Work temperature: 0℃to 45℃
25.Storage temperature: -20℃ to 60℃
26.Relative humidity:< 85%RH


Detailed Images

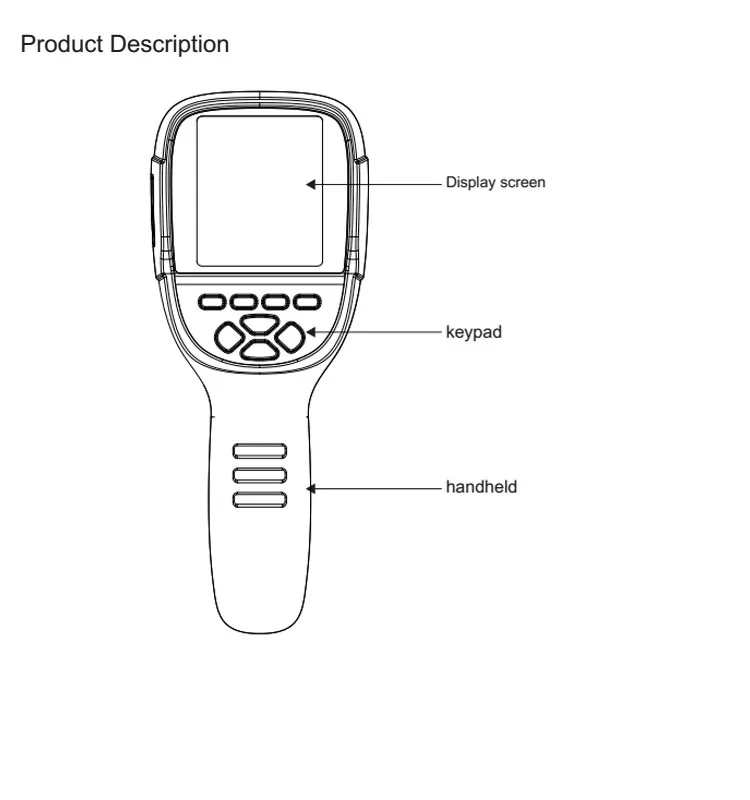

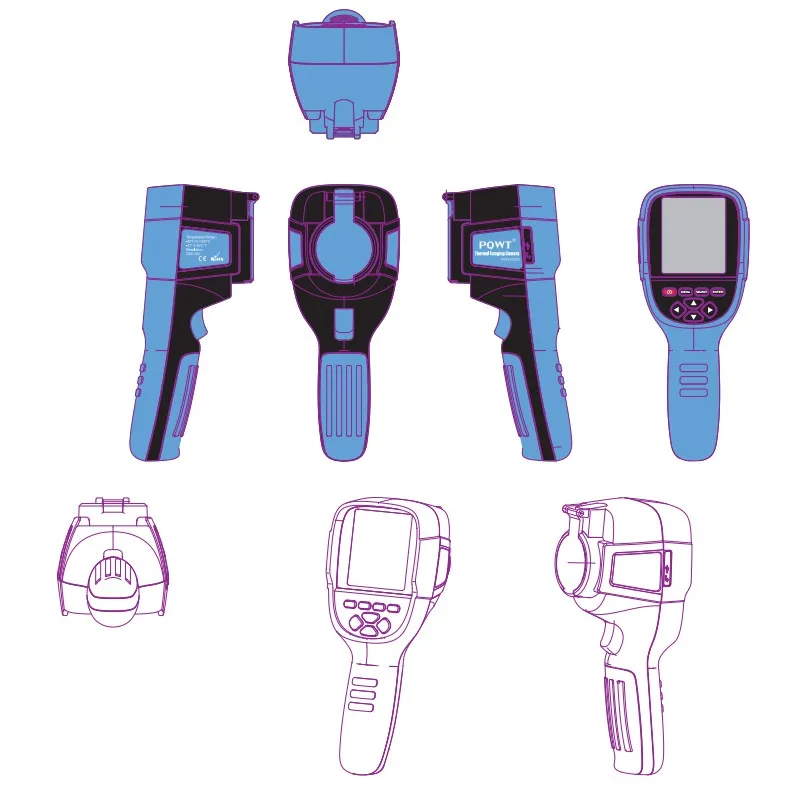

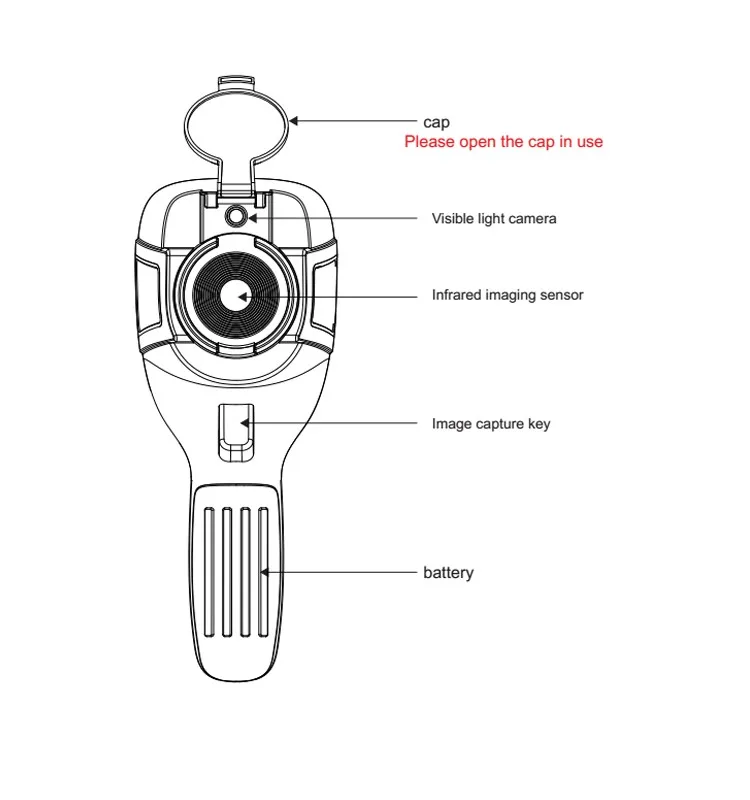

FunctIon and component introduce

Why Choose US

1.We are the only Geologic Exploration Equipment Institute in China with PQWT Patent of The high quality.
2.Government and CCTV-7 Recommend underground water detector
3. We are the top 10 selling underground water detector in 2016
4. Own R&D department with SGS and ISO9001:2008

Our advantages

Over the years, Puqi focuses on Hydrogeological exploration, Intelligent data-capture technology and Application of special technique, carrying out Scientific research, Technical services and Marketing application. We have completed more than 65 items including National ministries, Sino-foreign cooperation and major scientific research projects. Having the honour to win a number of national research awards, with more than 117 national patents.

After-sales service

1. Two year guarantee-if using of the product is influenced due to quality problem, you may receive guarantee of the product at the service network within 2 years after the date of purchase.

2. Lifetime maintenance-lifetime maintenance service is implemented on all factory series products. We offer maintenance of machine which surpasses the maintenance period or has manual damage with material and labor charges.

Technical surpport

If need any technical support, pls feel free to contact our sales engineer, will reply you in 24 hours.

We will always behind you!

Application

Find Water

Mine Detection

Cavity Exploration

Engineering Exploration

Archaeology

Geothermal Prospecting

Case Show
Packing & Delivery
About US

Hunan Puqi Geologic Exploration Equipment Institute is a professional institution in china who engaged in the R & D, manufacturing and sales of pipe water leak detector, leakage automatic analyser, geophysical prospecting underground water detector, cavity detector, mine locator, dam piping detector, borehole inspection camera and pipeline detector. More than 200 staffs, including 16 senior engineer, 49 intermediate engineer.Over the years, Puqi focuses on Hydrogeological exploration, Intelligent data-capture technology and Application of special technique, carrying out Scientific research, Technical services and Marketing application. We have completed more than 65 items including National ministries, Sino-foreign cooperation and major scientific research projects. Having the honour to win a number of national research awards, with more than 117 national patents.
Meanwhile, Puqi has established long term cooperation relationship with many scientific research institutes in Germany, US, Australia, Hong Kong and other countries and regions. Number of geological data laboratories has been established at multiple places in china, using our own unique software to carry out long term data collection, analysis and detection for different geologic structure, and set up the differential database of different geologic structure area.
